Lightweight X-ray Camera Medical
MAIN PRODUCT | 2-GENERATION
With this device we are able to bring incredible technology directly to the point-of-care-testing.

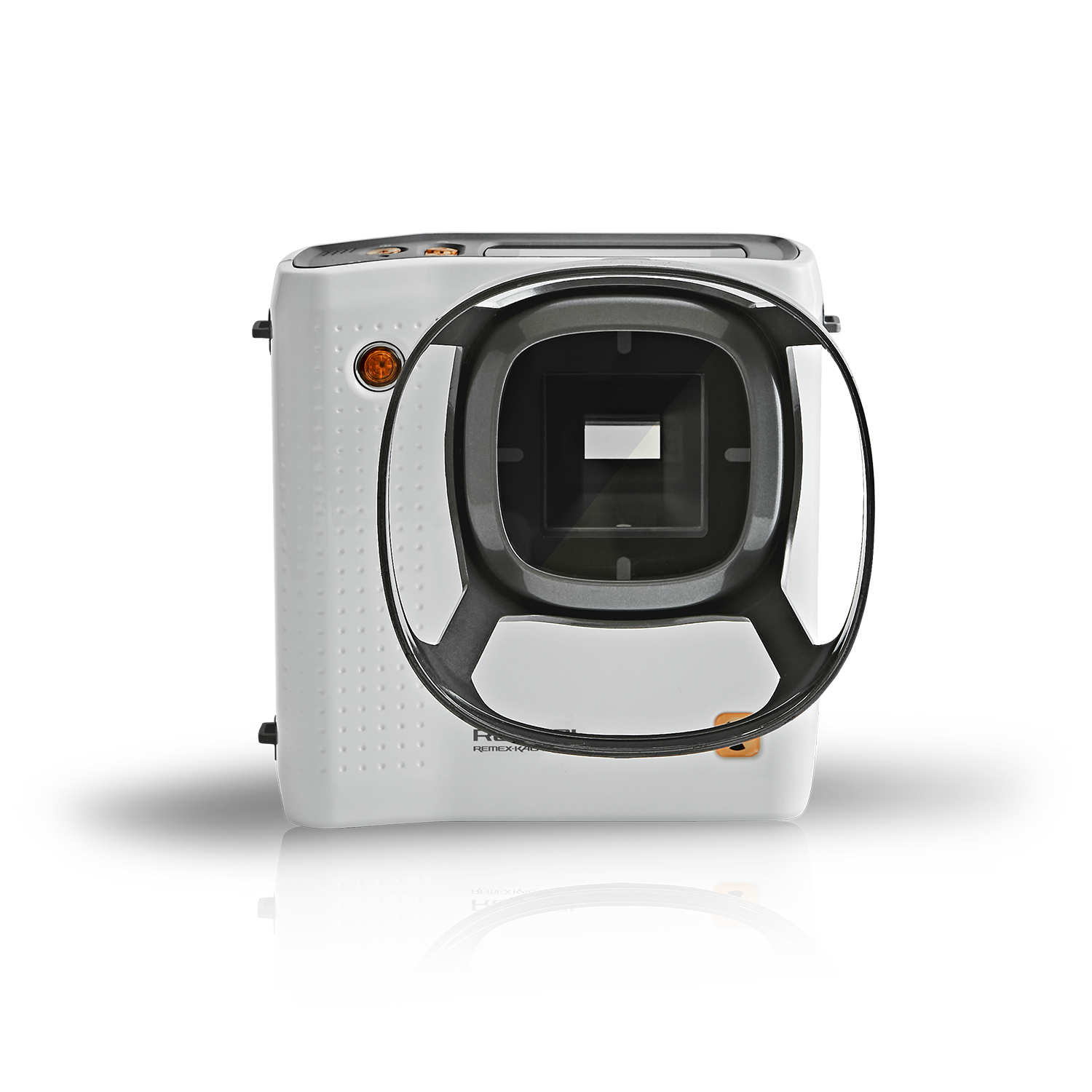

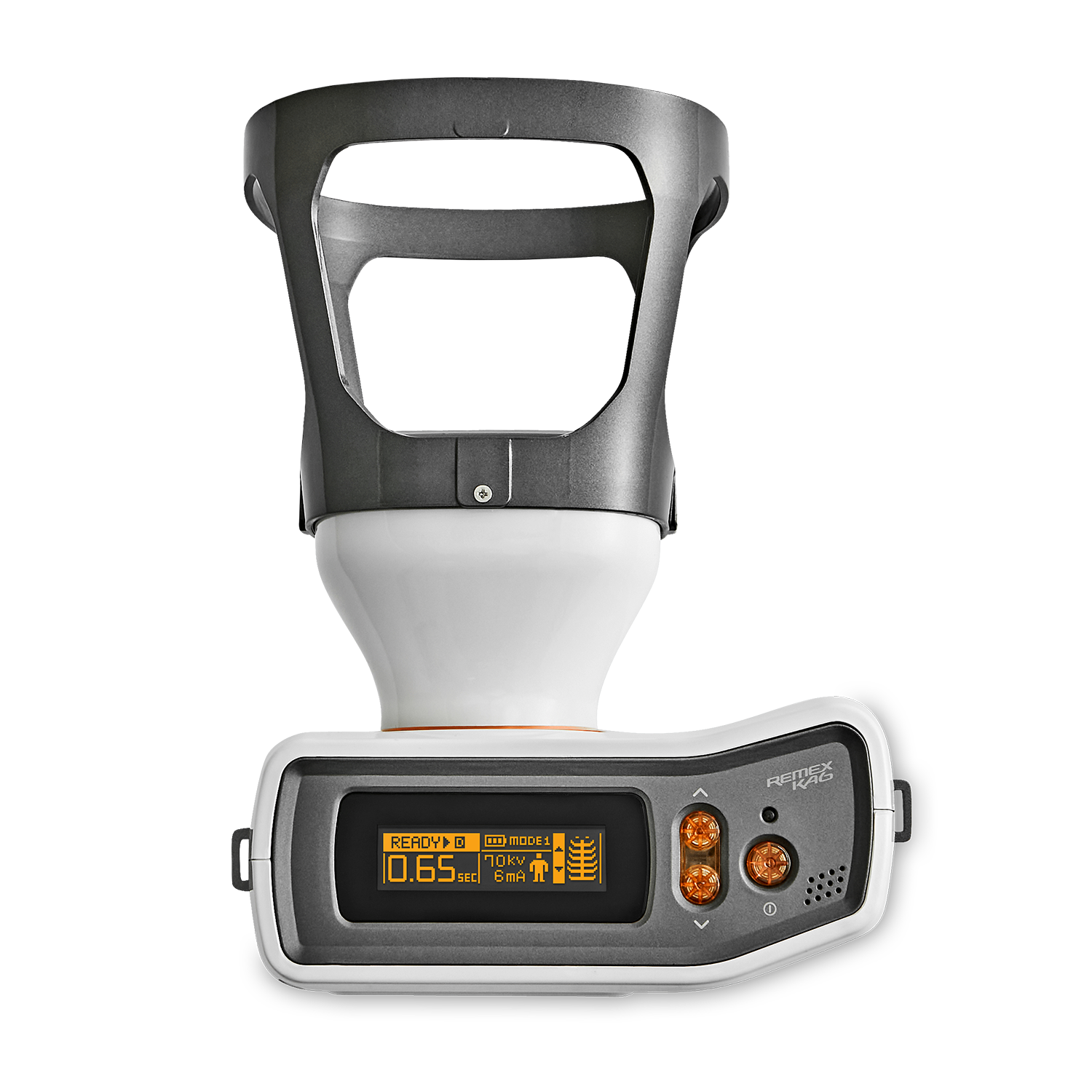

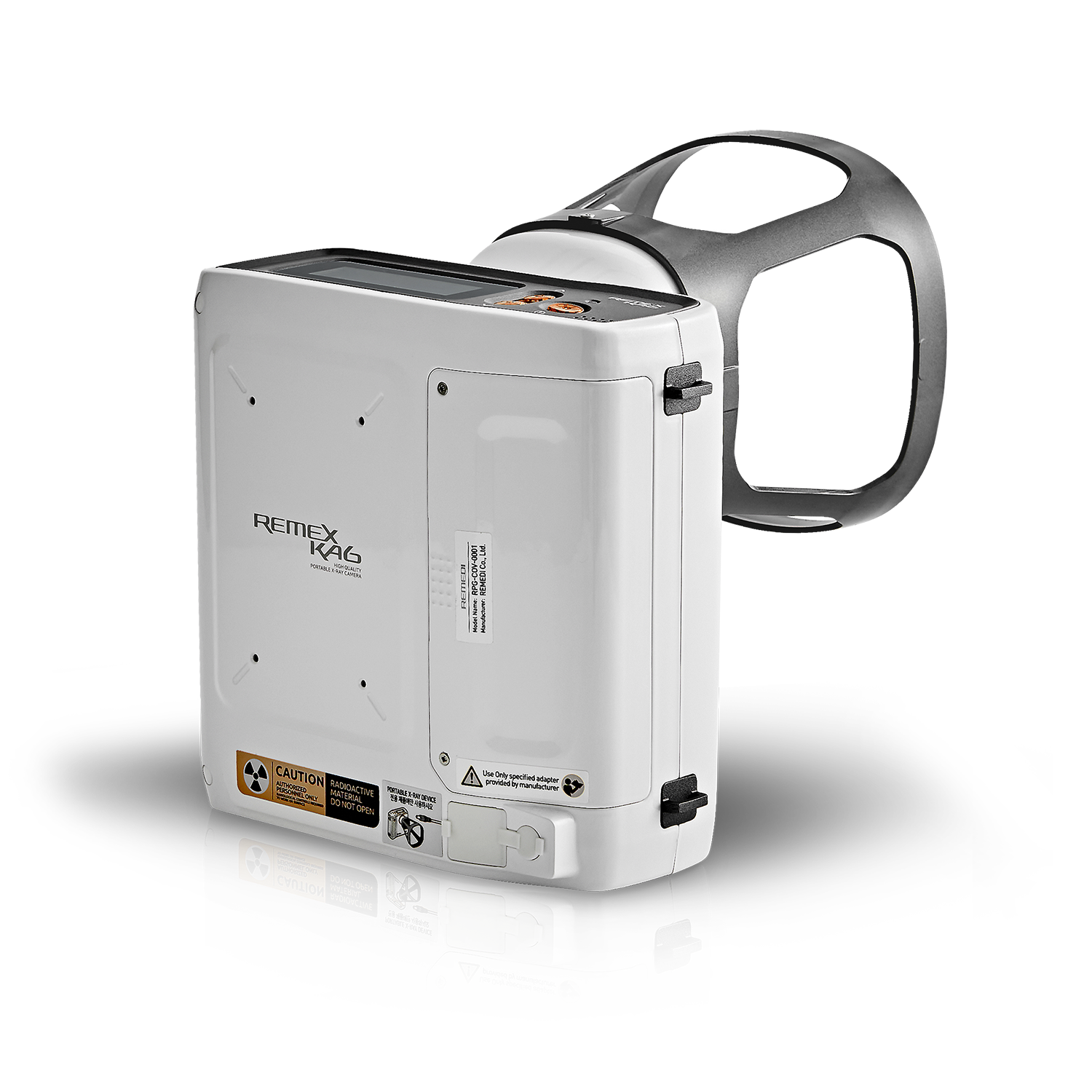

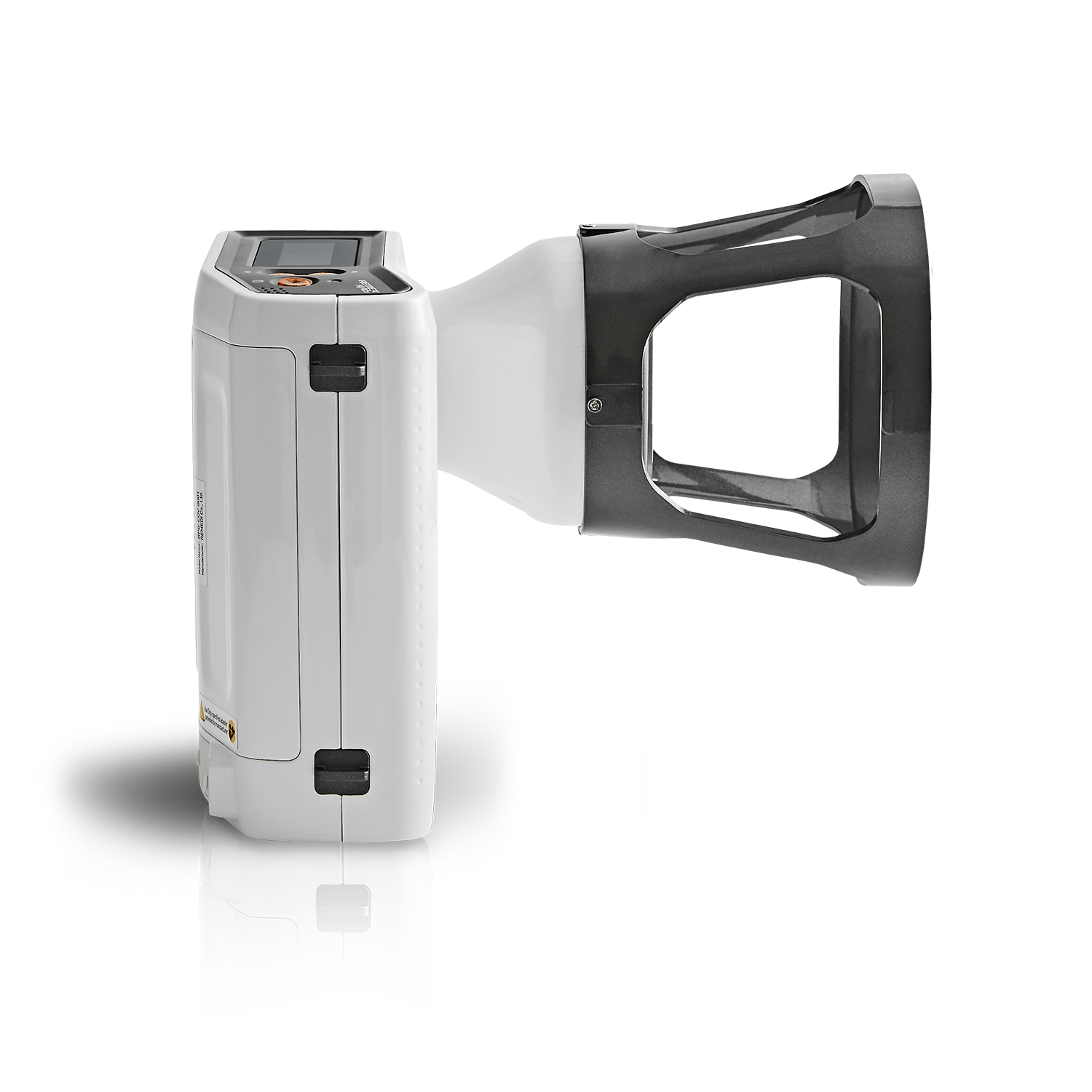

Handheld X-ray Camera | Medical Imaging

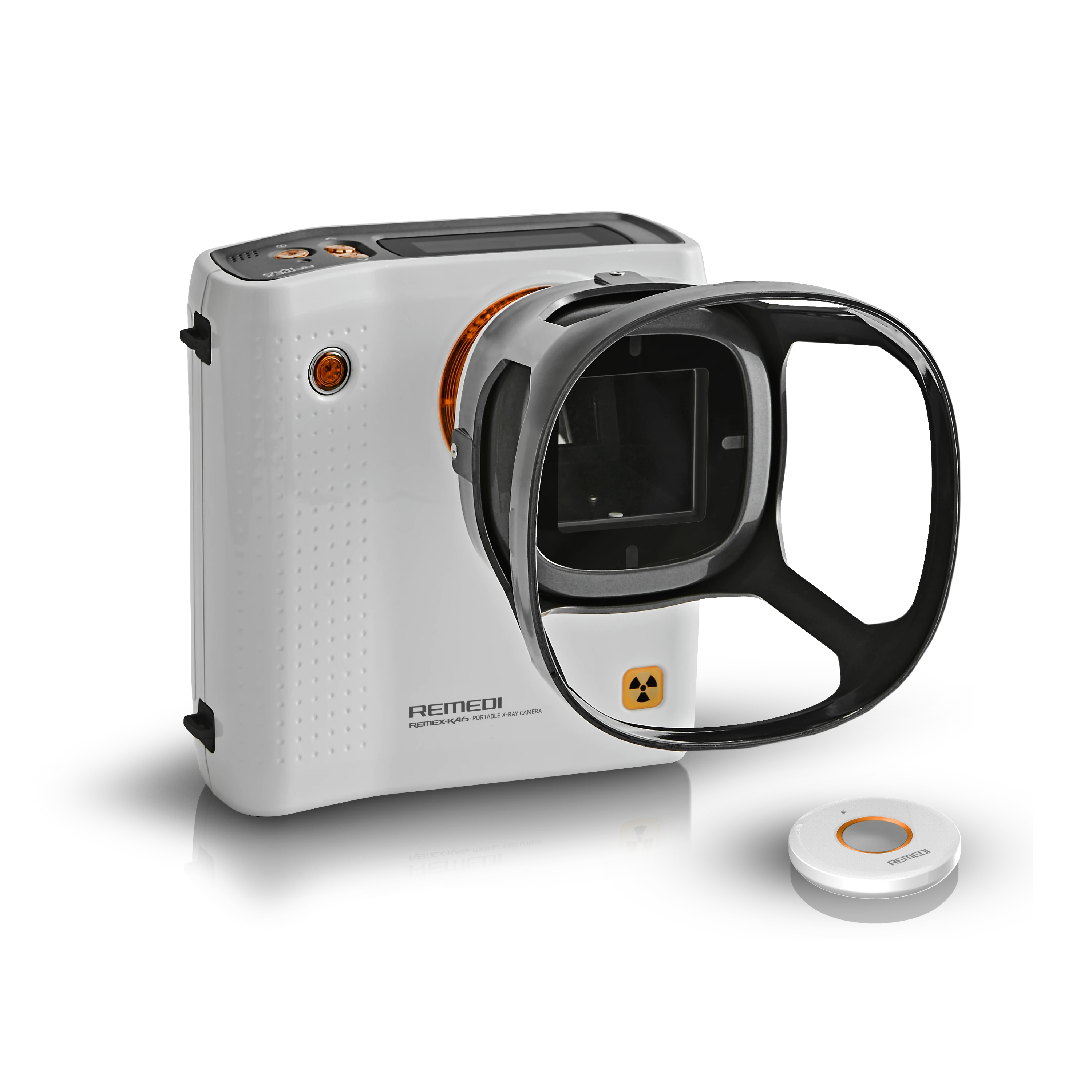

* Remote Control for REMEX-Xcam6 only
Superior Image Quality with Low Radiation Exposure
Expanded Clinical Coverage
- Parts of human body including adult chest, pelvis, abdomen, hands, feet and head
Reducing radiation exposure
by shortening imaging time
- Low dose product design and mechanism minimized radiation exposure for operators and patients
- Image acquisition under 3 seconds
Superior Quality X-ray Image
- 90kV : Improved image penetration → Improved bone identification
- 6mA : Reduces requires irradiation time → Reduces motion blurring
- 0.4mm Focal Spot → High resolution
Advantage Technology
THREE REDUCTION TECHNOLOGIES
Low dose
Minimized radiation exposure and safer for users
Increase the efficiency of X-rays and reduce the amount of radiation generated during X-rays as much as possible
High Resolution
High quality of X-ray image
Exclusive technology for achieving High Quality Images
Advanced image processing provides higher diagnostic value
Light Weight
Small and light weight in various spaces without location constraints
Excellent portability
Easy to move and can be used without restrictions on location
Performance & Specifications
INNOVATIVE PRODUCT
Tube Voltage
80 / 90 kV (Variable)
Tube Current
6 / 5 mA (Variable)
Exposure Time Range
0.06 ~ 2.0 Sec
Focal Spot Size
0.4 mm
mAs Range
0.12 ~ 12 mAs
Size
165.3 x 176.0 x 255.6 mm (LxHxW)
Weight
2.6 kg
