Industrial X-ray

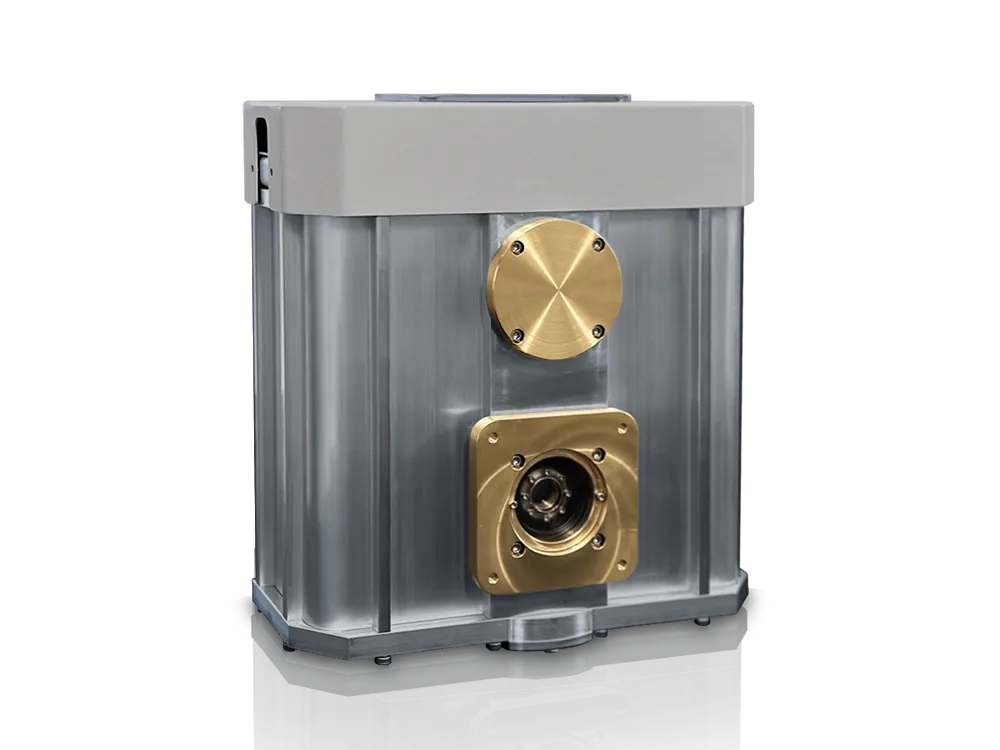

HIGH VOLTAGE TANK | RIX-B100
Smaller, light-weight, low dose, High-precision X-ray source
and Systems for the most demanding inspection applications.
Industrial X-ray, Battery
Specifications
INNOVATIVE PRODUCT
RIX-B100
Input Power
220 V
Power Consumption
1.5 kW
@220 VAC
Output Power
50 W
Voltage Range
30 ~ 50 kV
Variable (1 kV unit) Tolerance ±3 %
Current Range
0.5 ~ 1 mA
Variable (0.1 mA unit) Tolerance ±3 %
Focal Spot Size
0.1 mm
Anode Angle
12 degrees
Tact Time
< 4 sec
0.2 s of continuous irradiation
Exposure Time
0.5 sec
Size [LxWxH]
227 X 103 X 242 mm
Weight
5.5 kg
