Unique features of the QuickRay USB Sensor
Fast Response High Image Quality
Digital Intraoral Image Sensor | Dental Imaging | IoDS-2401 IoDS-2402
Comfort & Durability
& Fast Rate.
FEATURES OF THE PRODUCT
Image Quality
- Less Graininess : Cleanest image on the market
- Industry : Leading Contrast Resolution – Best at the penny test
- Industry : Leading Spatial Resolution-19 micron pixel size
Patient Comfort
- Rounded corners : 6.0mm radius of corner curvature
- Thin Sensor Plate : 5.4mm thick [ less than 1/4”]
- Low Profile Button : 6.0mm
Designed for Durability
- Thinner Cord : Direct USB from sensor plate to computer
- Sturdier Cord Jacket : Fewer wires enables greater protection
- Protected Against Fluids/Contaminants : Sealed cord / sensor junction
- Safer Vertical Bitewings : Robust, Bonded strain relief
- Repair Option : Cord Serviceability
Ergonomic Design
- Broad Range of Acceptable Exposure : Superior electronic gran control
- Snag-Resistant Cord : No interface box or cord bulge
- Easy Cabling : USB cord can be extended dozens of feet
- Standard holder Systems : Duphamed, Rinn, TrollByte, and others

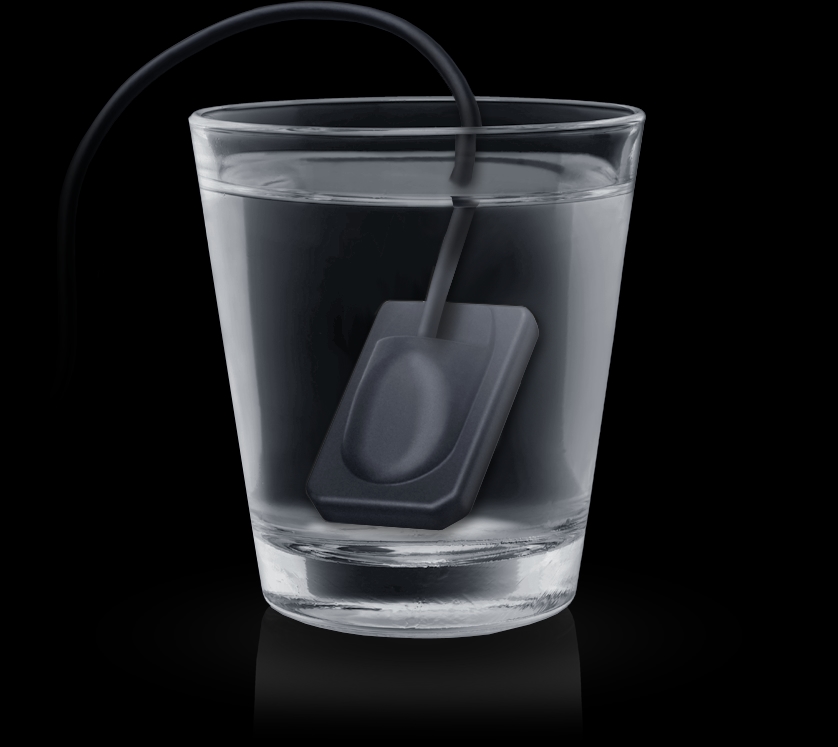

- Easier Cleaning : Immersible in glutaraldehyde and other disinfectant
Fast Response Rate
- CSI Scintillator
- High Resolution
- Advanced Image Processing Algorithm
- Easy to Use
- Increased Patient Comfortableness and Ergonomic Design
- Easy Connection Using Twain Driver
Advantage Technology
THREE REDUCTION TECHNOLOGIES
Image Quality
Create clear, high definition images
Higher sensitivity and better resolution
Patient Comfort
An ergonomic design considering the morphological and physiological characteristics of humans
Round corners and thin sensor plates that are easy to put in patient mouth
Easy to use
CMOS X-ray sensors to achieve the best quality images at the lowest possible dose
Internal shielding protect the operator
Performance & Specifications
INNOVATIVE PRODUCT

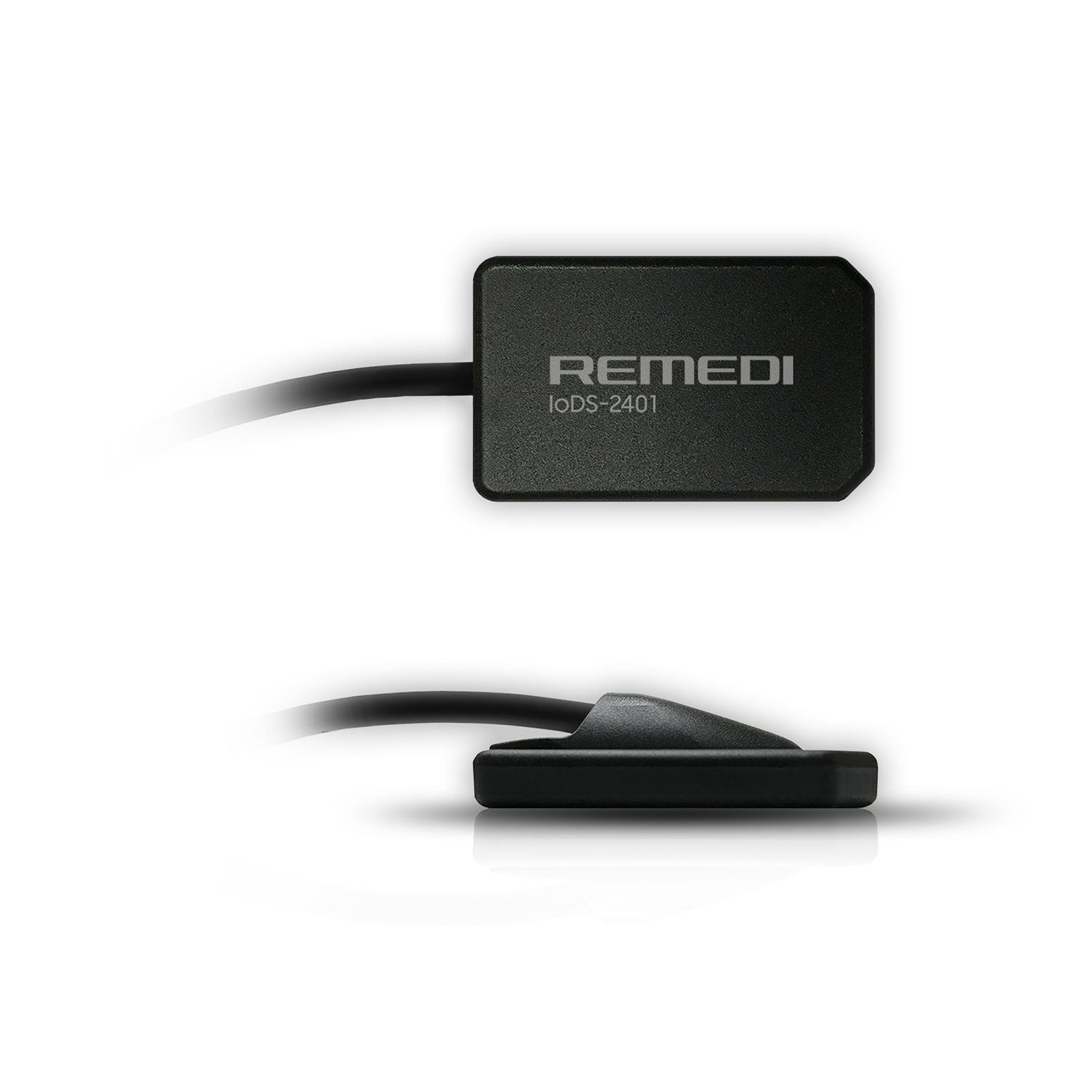

IoDS-2401
Outside Dimensions
39 x 25 mm
Image Size
30 x 20 mm
Image Resolution
20 lp/mm
Pixel Size
20 x 20 um
Pixel Pitch
20 [HxV]
Number of Total Pixels [HxV]
1.5 Megapixels [HxV]
Number of Effective Pixels
1000 x 1500
Sensor Type
CMOS Image Sensor
Scintillator Type
Csl [TI]
Interface
USB 2.0
Frame Rate
1.4 fps

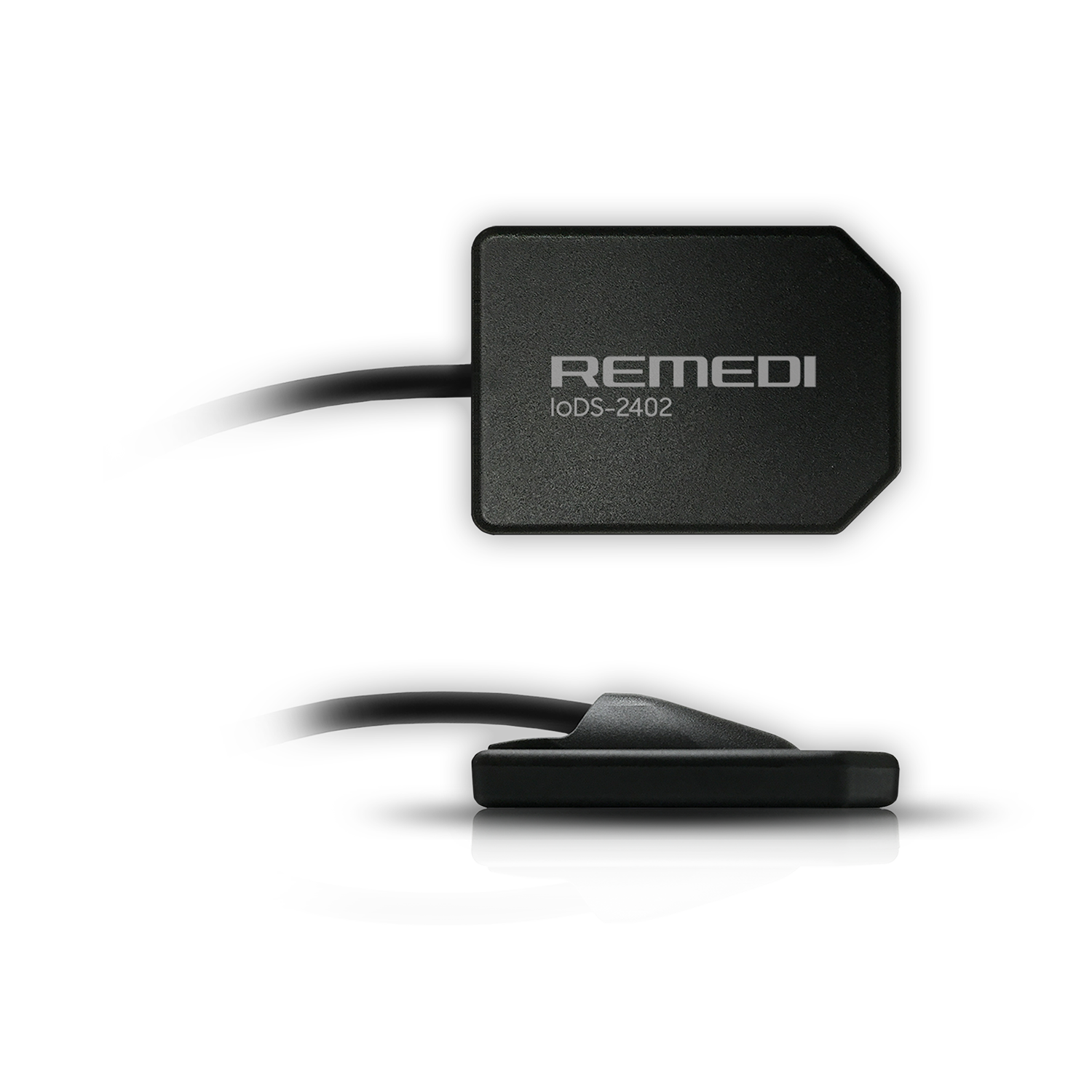

IoDS-2402
Outside Dimensions
42 x 30 mm
Image Size
34 x 26 mm
Image Resolution
20 lp/mm
Pixel Size
20 x 20 um
Pixel Pitch
20 [HxV]
Number of Total Pixels [HxV]
2.2 Megapixels [HxV]
Number of Effective Pixels
1300 x 1700
Sensor Type
CMOS Image Sensor
Scintillator Type
Csl [TI]
Interface
USB 2.0
Frame Rate
1.0 fps
