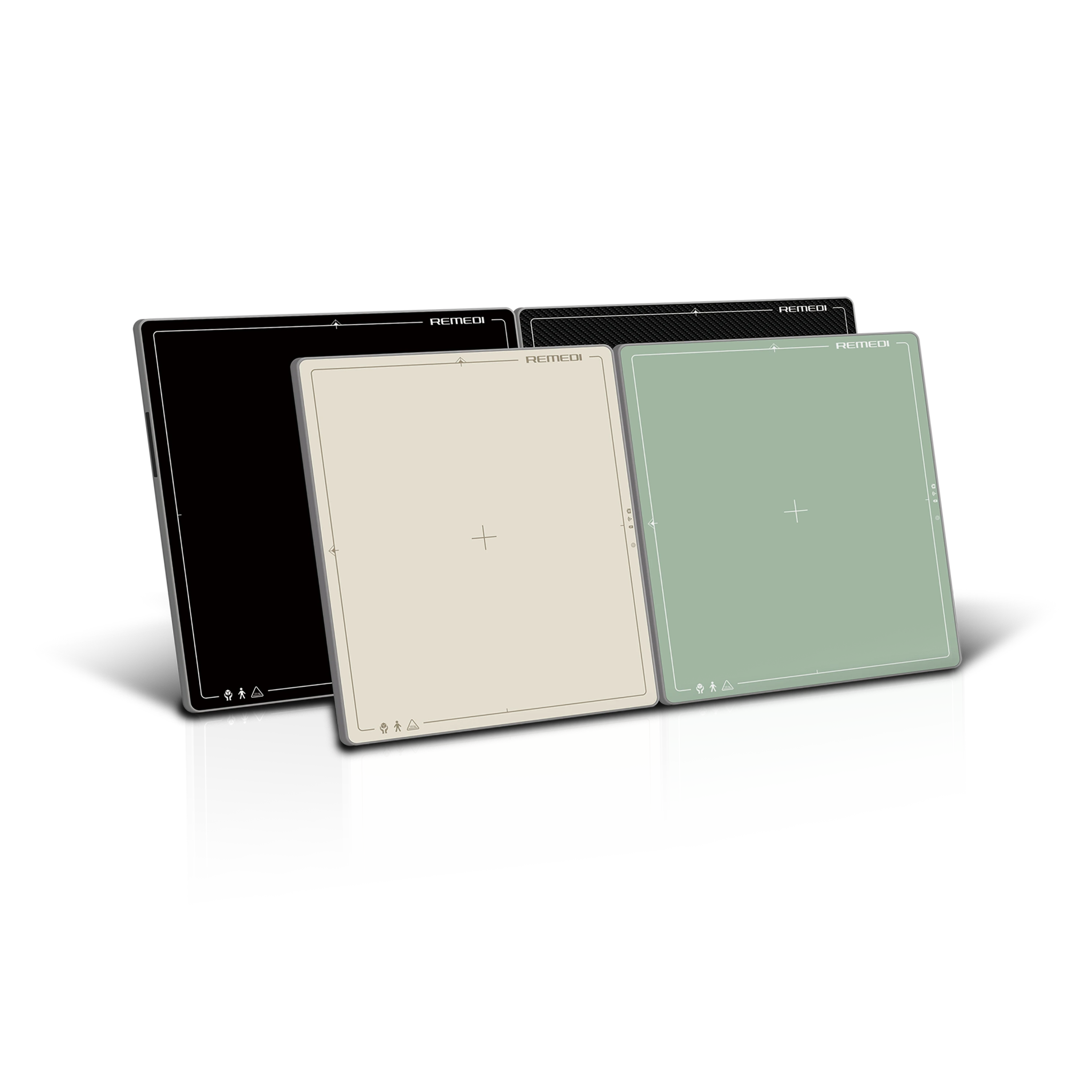

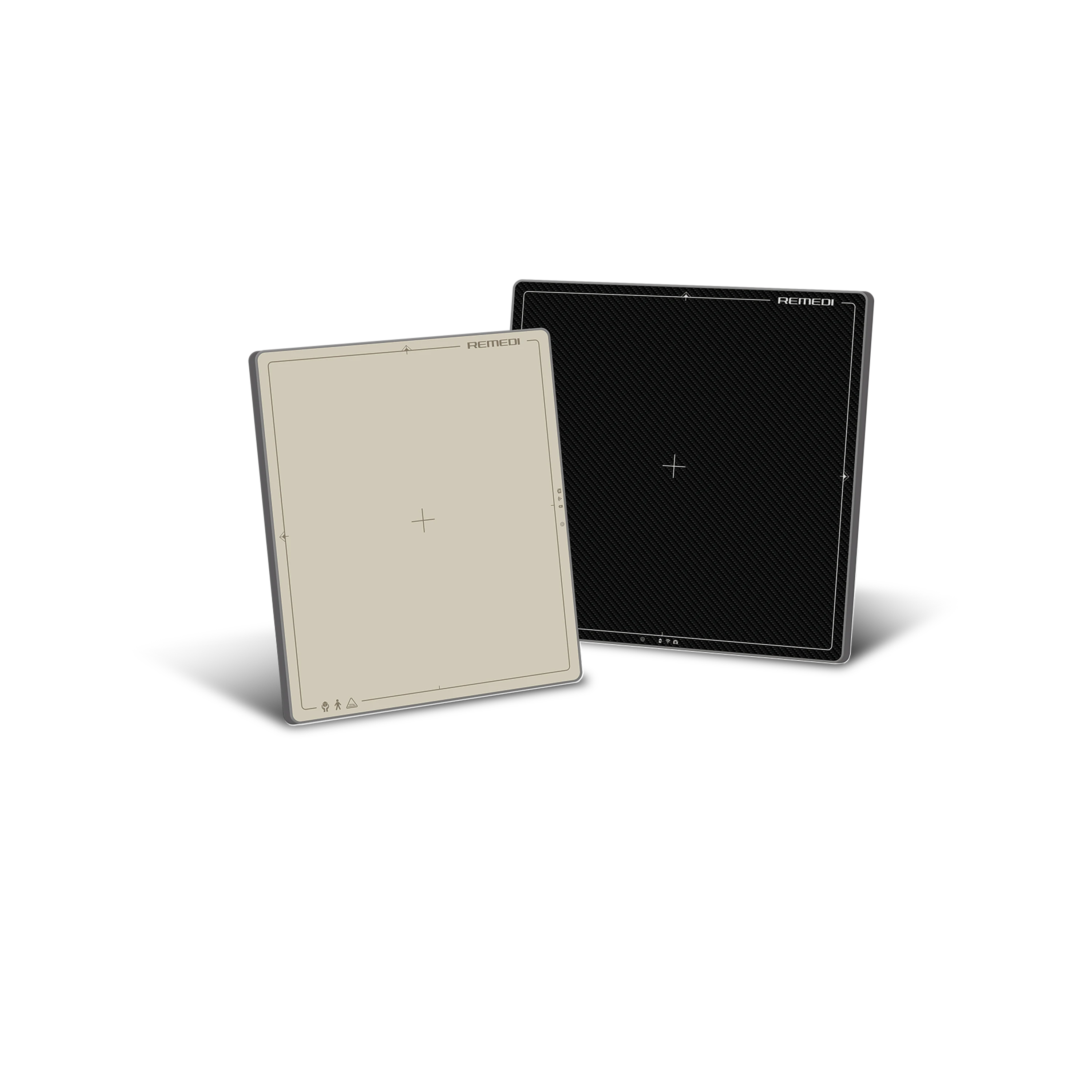

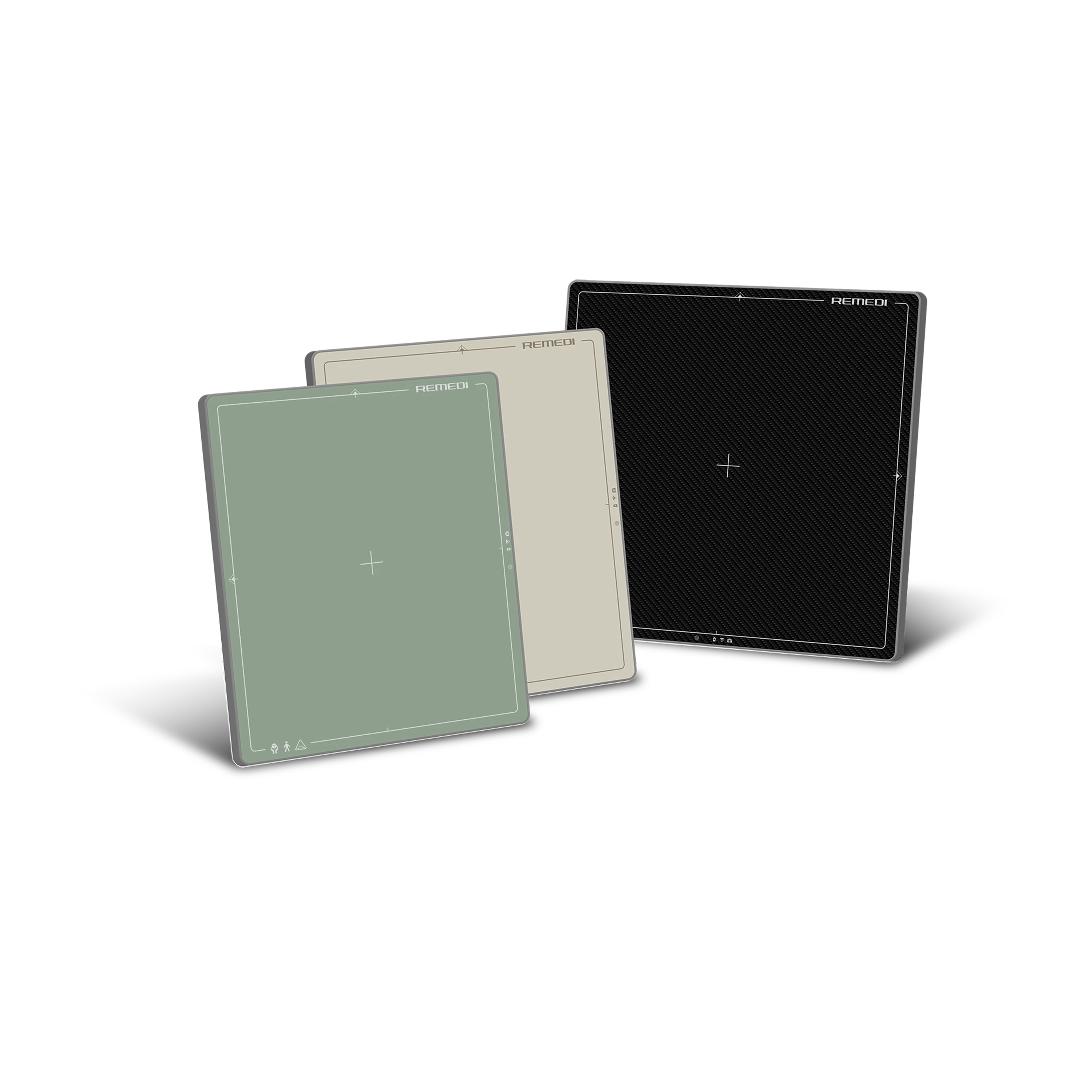

Flat Panel Dectector
RD1417 | RD1717 | RD1417F
We deliver a user-oriented product
which offers high quality images.
Flat Panel Dectector | RD1417 | RD1717 | RD1417F
* Not commercial use yet
Specifications
REMEX Wireless Detectors
REMEX-RD1417
Dimension
383 x 460 x 15 mm
Sensor Array
a-Si photodiode
Scintillator
Csl
Resolution
2500 x 3052
Pixel Size
140 um
Grayscale
16 bit
Number of Effective Pixels
1000 x 1500
Wifi
802.11ac / 2 antennas / 2s scan to display / AP mode
Drop height
70 cm
Housing Material
Mg-AI alloy
Weight
2.7 kg (Battery included)
Waterproof
IPX6
Durability
300 / 120 kg (Face load / Point load)
Battery Autonomy
8 hours*
* In SYNC mode, users can capture more than 1000 images every 30 seconds and it lasts over 8 hours.
Trigger Mode
AED Mode
Log File
Log file, sensor data and other calibration data are avaliable
Accessories
Battery / Magnetic connector cable with ethernet and power
Operation Temperature / Humidity
10 ~ 35 ℃ / 15 ~ 80 ℃
REMEX-RD1717
Dimension
460 x 460 x 15 mm
Sensor Array
a-Si photodiode
Scintillator
Csl
Resolution
3072 x 3072
Pixel Size
140 um
Grayscale
16 bit
Number of Effective Pixels
1000 x 1500
Wifi
802.11ac / 2 antennas / 2s scan to display / AP mode
Drop height
70 cm
Housing Material
Mg-AI alloy
Weight
3.2 kg (Battery included)
Waterproof
IPX6
Durability
300 / 120 kg (Face load / Point load)
Battery Autonomy
8 hours*
* In SYNC mode, users can capture more than 1000 images every 30 seconds and it lasts over 8 hours.
Trigger Mode
AED Mode
Log File
Log file, sensor data and other calibration data are avaliable
Accessories
Battery / Magnetic connector cable with ethernet and power
Operation Temperature / Humidity
10 ~ 35 ℃ / 15 ~ 80 ℃
REMEX Flexible Detectors
REMEX-RD1417F
Dimension
383 x 460 x 15 mm
Sensor Array
a-Si photodiode (Glass-Free)
Scintillator
Csl
Resolution
2500 x 3052
Pixel Size
140 um
Grayscale
16 bit
Number of Effective Pixels
1000 x 1500
Wifi
802.11ac / 2 antennas / 2s scan to display / AP mode
Drop height
70 cm
Housing Material
Mg-AI alloy
Weight
2.5 kg (Battery included)
Waterproof
IPX6
Durability
300 / 120 kg (Face load / Point load)
Battery Autonomy
8 hours*
* In SYNC mode, users can capture more than 1000 images every 30 seconds and it lasts over 8 hours.
Trigger Mode
AED Mode
Log File
Log file, sensor data and other calibration data are avaliable
Accessories
Battery / Magnetic connector cable with ethernet and power
Operation Temperature / Humidity
10 ~ 35 ℃ / 15 ~ 80 ℃
